2 inch mini full range horn speaker 50mm 2w 4 ohm speaker
Short Description:
Sample:
Free sample
Lead-time:
10-20days
Type:
Passive
Min.Order Quantity:
1000Piece/Pieces,support trial order
Supply Ability:
100000 Piece/Pieces per Month
Port:
Xiamen,Shenzhen,Ningbo,etc
Payment Terms:
T/T,L/C.Paypal
Brand:
soundbuzzer
Technology support:
Yes
Support customization:
Yes
Send email to us
Download as PDF
Product Detail
Product Tags
2 inch mini full range horn speaker 50mm 2w 4 ohm speaker

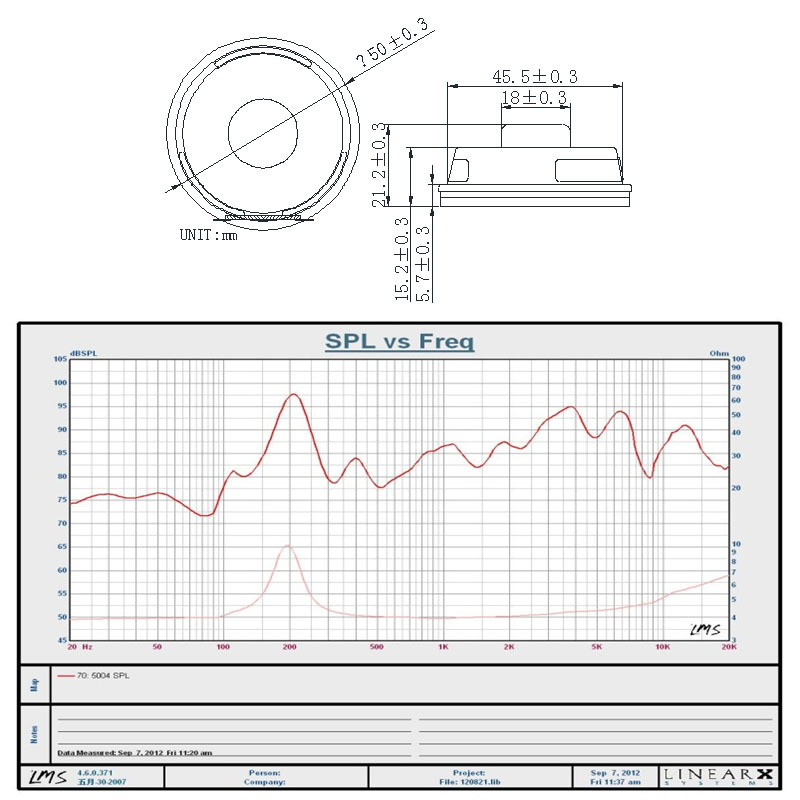

Specification
Speaker
Music speaker driver
Model
5022CB04R
Diameter
(Dia )50MM*21.2MM (HEITH)
Rated power
4 watt Max 4 watt
Nominal Impedance
4 Ohm±15%
Lowest Resonance Frequency
200±20% HZ
Output Sound Pressure Level(S.P.L)
88± 3db.
Effective Frequency Band
F0-20KHZ ,Average SPL±10db
Certificate
