Good closed basses headphone speaker 40mm 32ohm 20mw loudspeaker
Short Description:
Sample:
Free sample
Lead-time:
10-20days
Type:
Passive
Min.Order Quantity:
1000Piece/Pieces,support trial order
Supply Ability:
100000 Piece/Pieces per Month
Port:
Xiamen,Shenzhen,Ningbo,etc
Payment Terms:
T/T,L/C.Paypal
Brand:
soundbuzzer
Technology support:
Yes
Support customization:
Yes
Send email to us
Download as PDF
Product Detail
Product Tags
Good closed basses headphone speaker 40mm 32ohm 20mw loudspeaker
Specification
Speaker
Mylar speaker
Model
40PM32R

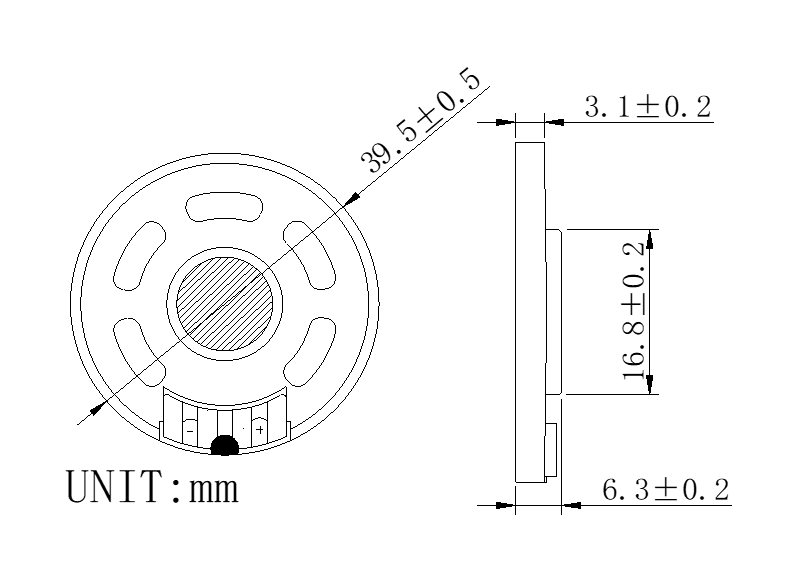

Diameter
(Dia )40MM*6.3MM (HEITH)
Rated power
0.01 watt Max 0.03 watt
Nominal Impedance
32 Ohm±15%
Lowest Resonance Frequency
465±20% HZ
Output Sound Pressure Level(S.P.L)
90± 3db.
Effective Frequency Band
F0-12KHZ ,Average SPL±10db
Certificate
