Factory direct sale 50mm mylar speaker 0.5 watt 50ohm loudspeaker
Loading...
Short Description:
Sample:
Free sample
Lead-time:
10-20days
Type:
Passive
Min.Order Quantity:
1000Piece/Pieces,support trial order
Supply Ability:
100000 Piece/Pieces per Month
Port:
Xiamen,Shenzhen,Ningbo,etc
Payment Terms:
T/T,L/C.Paypal
Brand:
soundbuzzer
Technology support:
Yes
Support customization:
Yes
Send email to us
Send email to us
Download as PDF
Product Detail
Product Tags

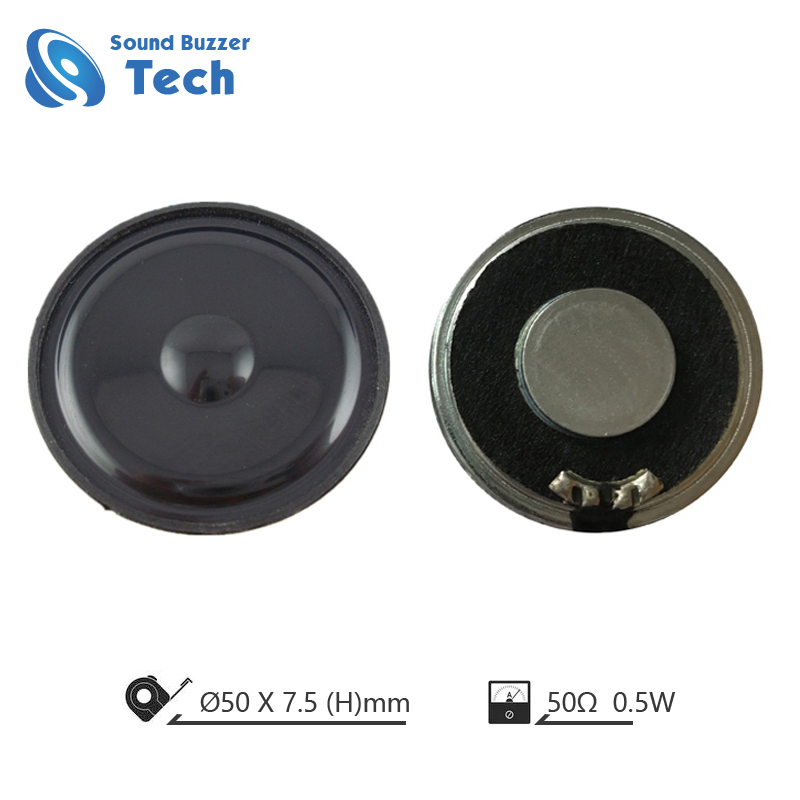

Factory direct sale 50mm mylar speaker 0.5 watt 50ohm loudspeaker

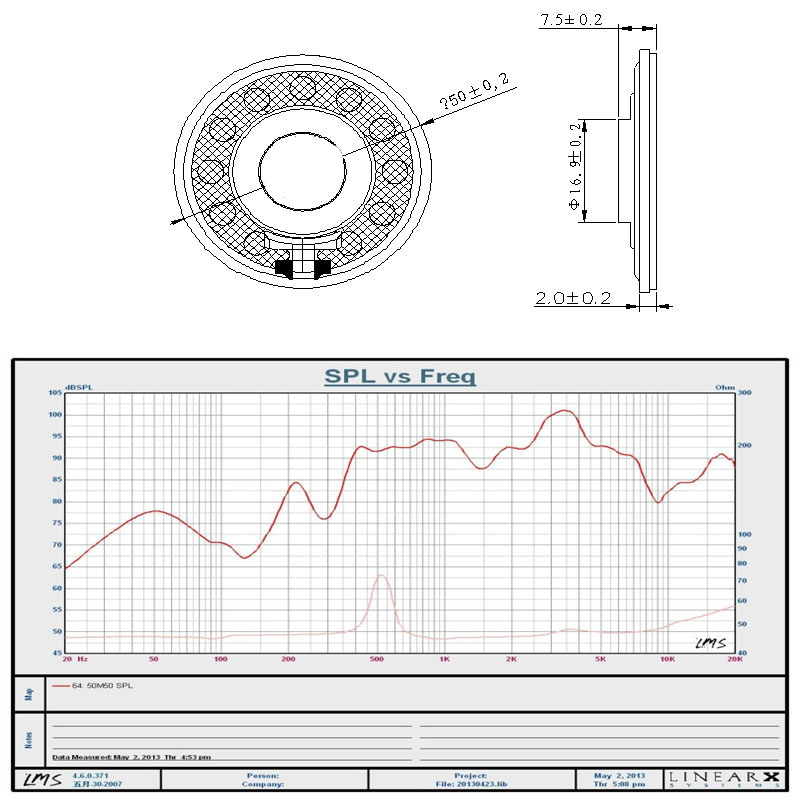

Specification
Speaker
Mylar speaker
Model
50PM50R
Diameter
(Dia )50MM*7.5MM (H)
Rated power
0.5watt Max 1.0watt
Nominal Impedance
50 Ohm±15%
Lowest Resonance Frequency
500±20% HZ
Output Sound Pressure Level(S.P.L)
92± 3db.
Effective Frequency Band
F0-20KHZ ,Average SPL±10db
Certificate
