Professional LCD TV Speaker Unit 30X70mm 8ohm 5w tv speaker unit
Short Description:
Sample:
Free sample
Lead-time:
10-20days
Type:
Passive
Min.Order Quantity:
1000Piece/Pieces,support trial order
Supply Ability:
100000 Piece/Pieces per Month
Port:
Xiamen,Shenzhen,Ningbo,etc
Payment Terms:
T/T,L/C.Paypal
Brand:
soundbuzzer
Technology support:
Yes
Support customization:
Yes
Send email to us
Download as PDF
Product Detail
Product Tags
Professional LCD TV Speaker Unit 30X70mm 8ohm 5w tv speaker unit

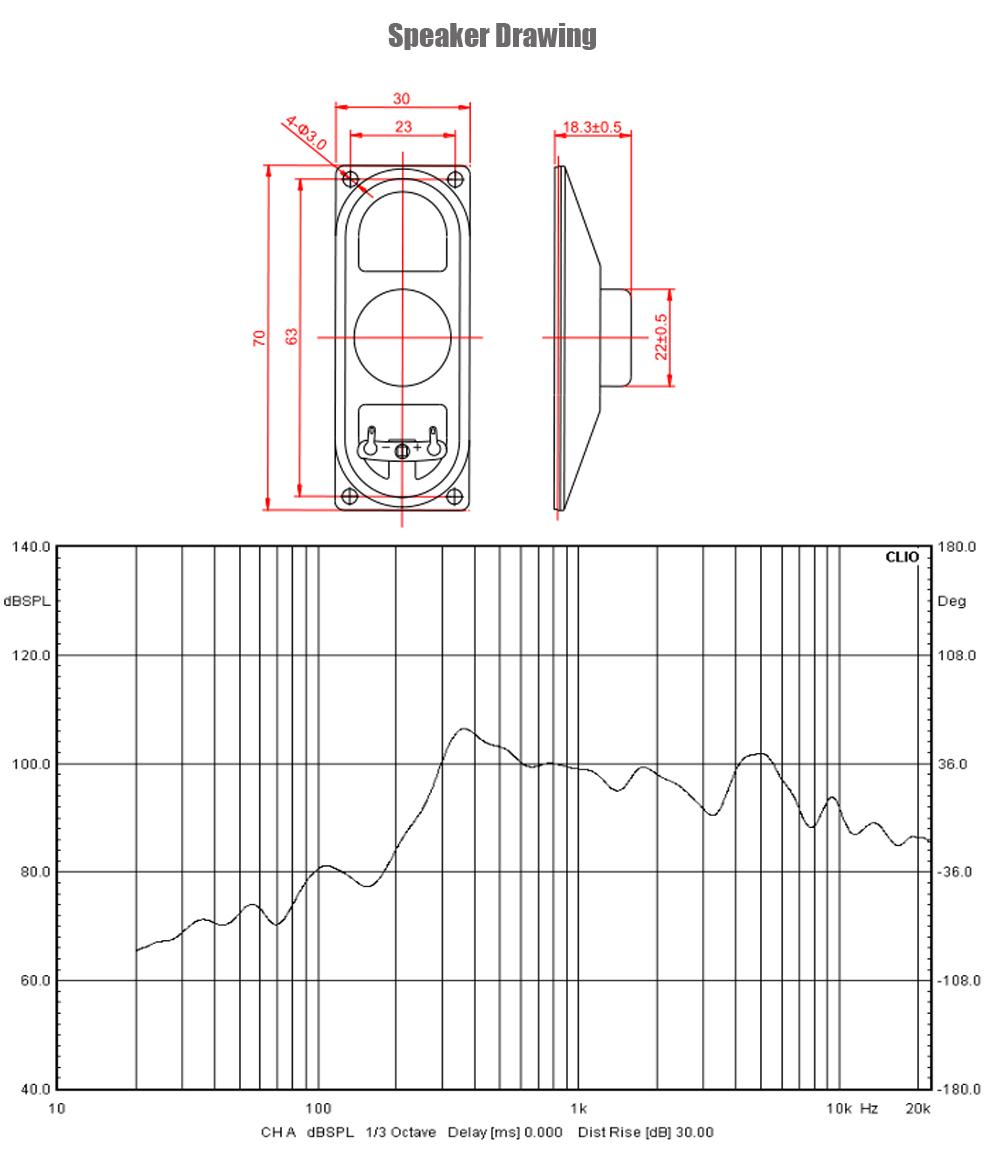

Specification
Speaker
TV speaker
Model
3070CP08-4
Diameter
(Dia )30MM*70MM (W)
Rated power
5.0watt Max 5.5 watt
Nominal Impedance
8 Ohm±15%
Lowest Resonance Frequency
450±20% HZ
Output Sound Pressure Level(S.P.L)
99± 3db.
Effective Frequency Band
F0-10KHZ ,Average SPL±10db
Certificate
